View Issue Details

IDProjectCategoryView StatusLast Update
0001440T99X171.00 SKB EagleSWpublic2022-03-25 16:00
Reporter(ALTech) SY Yoon Assigned To(SW) Bcan Yeh Due Date2022-03-18 15:00
PrioritynormalSeveritys4-minorReproducibilitysometimes
Status closedResolutionfixed
Summary0001440: ATT LOGIN Number input error
DescriptionATT version : 220217
STB Firmware version : 15.532.20

SKB Factory test ATT with daemon version 220217.
We tried to reproduced it. But we have some issue as follows.

1. Use ATBCommnicationTest.exe.
2. We start with OPTION command(Input Authentication key).
3. It looks good for First input(CITIZEN-NUMBER).
    But there are only 3 characters for LOGIN-NUMBER.
4. I captured log file during ATT Test. I attached it.
    It looks OK.
Could you check what the issue is ?

Attached File :
                 ATT_Authentication_Error0314.zip : Log file

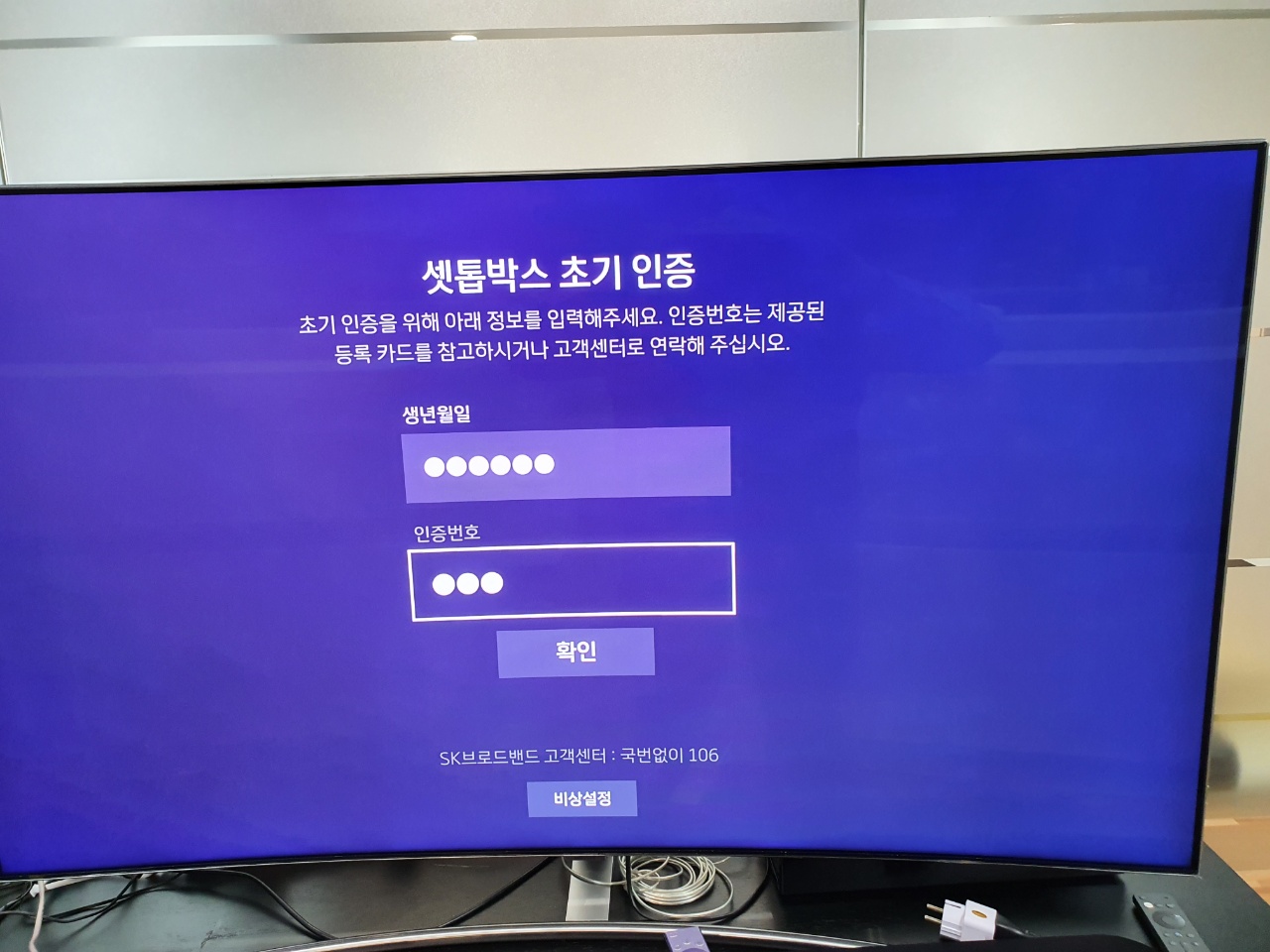

                 ATT_authenticationError_0314.jpg : Screen capture

We have 2 samples that have same issue in our office.

Best Regards,
SuhYoung YOON
TagsNo tags attached.
Attach Tags

Users monitoring this issue

User List (ALTech) Jason Park , (ALTech) JunGyu Kim , (ALTech) Younkwang Jung , (SW) Kerwin Chen

Activities

(ALTech) SY Yoon

2022-03-14 14:27

developer


(SW) Bcan Yeh

2022-03-14 18:16

developer   ~0009605

Hi Mr.Yoon,

1. What is the probability of this situation?
2. At our site, we can't reproduce this problem.
3. In Attdaemon, it uses 'input text xxxxxx' command to input CITIZEN-NUMBER and LOGIN-NUMBER instead of inputting authentication data character by character.
4. Could you try to reproduce it in non-skb network?
    skb network: internet and multicast(IPTV) are available
    non-skb network: internet is available and multicast(IPTV) is not available

(ALTech) SY Yoon

2022-03-14 19:46

developer   ~0009606

Hi Mr. Bcan Yeh,

I answerd as follows.
1. What is the probability of this situation?
    -> We have 2 samples that SKB sent for review this issue. SKB found some product during the test.
         It happened 100 % with both 2 samples. But I never saw this issue with other samples.
2. At our site, we can't reproduce this problem.
    -> It happened only 2 samples that SKB factory sent to us.
3. In Attdaemon, it uses 'input text xxxxxx' command to input CITIZEN-NUMBER and LOGIN-NUMBER instead of inputting authentication data character by character.
    -> I can input login-number by RCU after issue happen. After login-number input by RCU, STB worked well.
4. Could you try to reproduce it in non-skb network?
    -> Our office use SKB network only. So we cannot test it. But I will try to make it.
        And the STBs have the issue is secured B'd. We have some restriction to debug it.
        Is there any method to dump data on eMMC ? If yes, then we will dump it and send to you.

(SW) Bcan Yeh

2022-03-15 09:32

developer   ~0009610

Hi Mr.Yoon,

1. Does the 100% means that you can reproduce this problem in each test?
2. Do you complete ATT test on any one of 2 samples?
     It will factoryReset at the end and please check if the missing LOGIN-NUMBER problem exists or not.
3. If the problem exists after factoryReset, please update the box with SD fw and check again.
4. You can use 'adb bugreport' to collect debug information.

(SW) Bcan Yeh

2022-03-15 17:33

developer   ~0009621

Note:

There are 2 workarounds:
1. Input the LOGIN-NUMBER character by character instead of using "input text" command
2. Remove all 3-party app before logging in

Use workaround 1:
AttDaemon (220315): https://drive.google.com/file/d/1Rq8sxhgasZ9c9BMrMCQcilpwYOaHxvv1/view?usp=sharing
AttDaemon (220315 faked with 220217): https://drive.google.com/file/d/1qMusHtAsilZrlQfVa4B7Wa5TU-_6LBLc/view?usp=sharing

(SW) Bcan Yeh

2022-03-18 08:44

developer   ~0009645

AttDaemon (220315) is released.

(SW) Bcan Yeh

2022-03-25 16:00

developer   ~0009705

Close this issue

Issue History

Date Modified Username Field Change
2022-03-14 14:27 (ALTech) SY Yoon New Issue
2022-03-14 14:27 (ALTech) SY Yoon Status new => assigned
2022-03-14 14:27 (ALTech) SY Yoon Assigned To => (SW) Bcan Yeh
2022-03-14 14:27 (ALTech) SY Yoon File Added: ATT_Authentication_Error0314.zip
2022-03-14 14:27 (ALTech) SY Yoon File Added: ATT_authenticationError_0314.jpg
2022-03-14 14:28 (ALTech) SY Yoon Issue Monitored: (ALTech) Younkwang Jung
2022-03-14 14:28 (ALTech) SY Yoon Issue Monitored: (ALTech) JunGyu Kim
2022-03-14 14:28 (ALTech) SY Yoon Issue Monitored: (ALTech) Jason Park
2022-03-14 14:29 (ALTech) SY Yoon Issue Monitored: (SW) Kerwin Chen
2022-03-14 14:32 (ALTech) SY Yoon Description Updated
2022-03-14 14:33 (ALTech) SY Yoon Description Updated
2022-03-14 18:16 (SW) Bcan Yeh Note Added: 0009605
2022-03-14 19:46 (ALTech) SY Yoon Note Added: 0009606
2022-03-15 09:16 (SW) Kerwin Chen Severity s2-severe => s4-minor
2022-03-15 09:32 (SW) Bcan Yeh Note Added: 0009610
2022-03-15 17:33 (SW) Bcan Yeh Note Added: 0009621
2022-03-18 08:44 (SW) Bcan Yeh Status assigned => resolved
2022-03-18 08:44 (SW) Bcan Yeh Resolution open => fixed
2022-03-18 08:44 (SW) Bcan Yeh Note Added: 0009645
2022-03-25 16:00 (SW) Bcan Yeh Status resolved => closed
2022-03-25 16:00 (SW) Bcan Yeh Note Added: 0009705
